ROUND ROAD BARS
Traditional round centre sections with sufficient straight clamping width and clean cable routing represent the most realistic basis for the concept mount.
SIZING & COMPATIBILITY
MEASURE FIRST.
RIDE CONFIDENTLY.
Everything important at a glance: envelope dimensions, fit logic and the key questions any real product team would have to answer before a basket like this reaches the road.

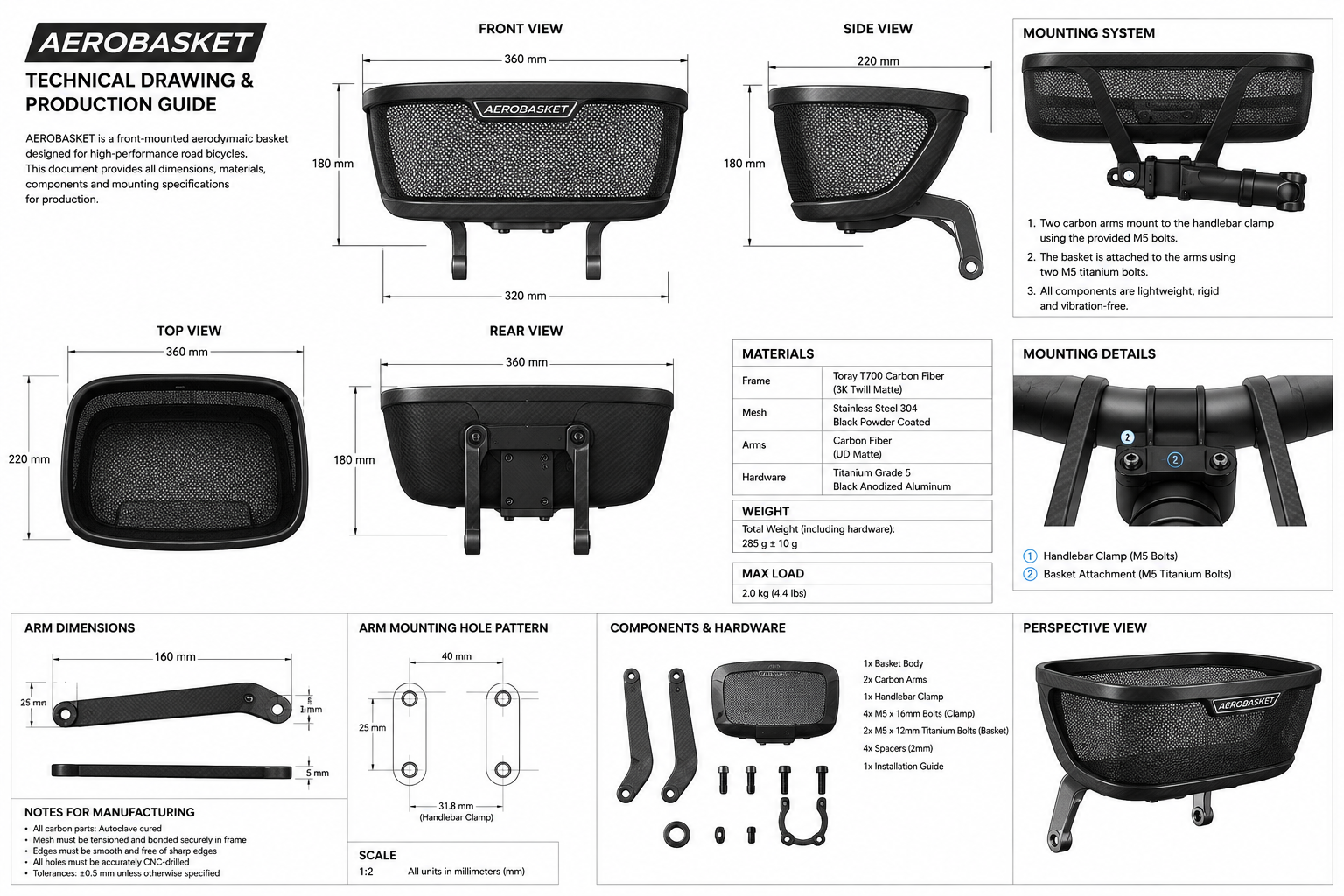

PRODUCT ENVELOPE
360 × 220 × 180 MM
The AEROBASKET concept uses a low and wide profile. This helps the basket appear integrated with the front cockpit of a racing bicycle instead of feeling like a conventional utility add-on.
Width360 mm
Measured from the outer left edge to the outer right edge of the basket body.
Depth220 mm
Measured from the front face to the rear wall of the basket.
Height180 mm
Measured from the upper rim to the lower structural shell.
Concept mass285 g
An indicative design target only. Not verified by a finished physical prototype.
HANDLEBAR COMPATIBILITY
CHECK THE COCKPIT BEFORE YOU CHECK OUT.
The mounting system shown is conceptual. In a real product programme, the clamp, fastener loads and interaction with the handlebar would have to be engineered and validated properly.
SEMI-INTEGRATED COCKPITS
Compatibility depends on centre-section geometry, brake hose position, accessory mounts, hand clearance and the desired steering range.
ONE-PIECE AERO COCKPITS
Irregular carbon profiles would require a dedicated adaptor, carefully defined clamp forces and a proper structural assessment before any use.
QUICK FIT CHECK
FOUR THINGS TO VERIFY.
These checks transform the concept from a pretty render into something that could eventually become a real engineered product.
01
CLAMP AREA
Measure the diameter and the uninterrupted width of the handlebar centre section. The mount needs reliable purchase and enough space to sit correctly.
02
CABLE CLEARANCE
Check brake hoses, shift cables, computer mounts and the route any internal cabling takes around the stem area.
03
STEERING SPACE
Confirm that the basket does not interfere with hands, knees, the front wheel, head tube or the turning radius of the bars.
04
STRUCTURAL VALIDATION
Before manufacturing, mounting or riding a physical version, the concept must be reviewed by a qualified engineer and tested appropriately.
